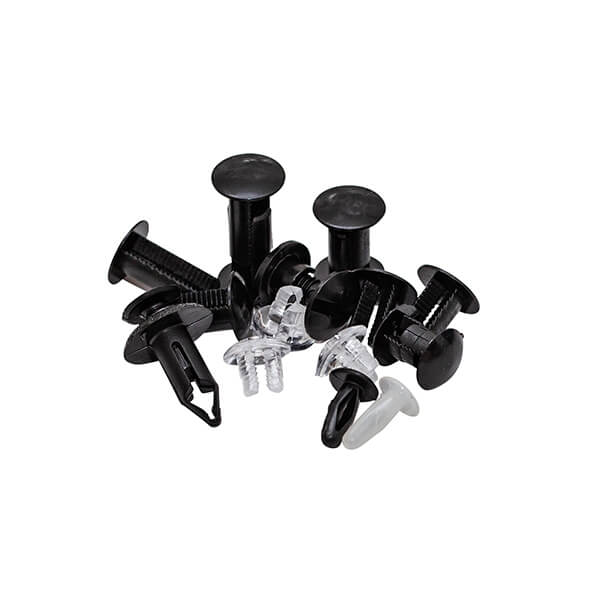

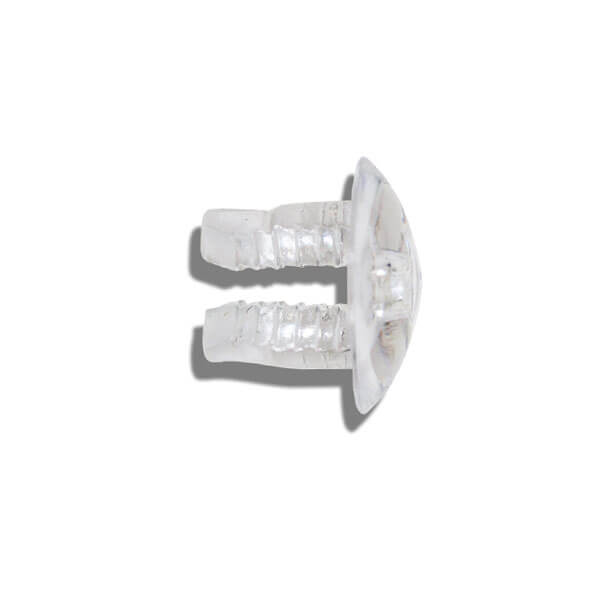

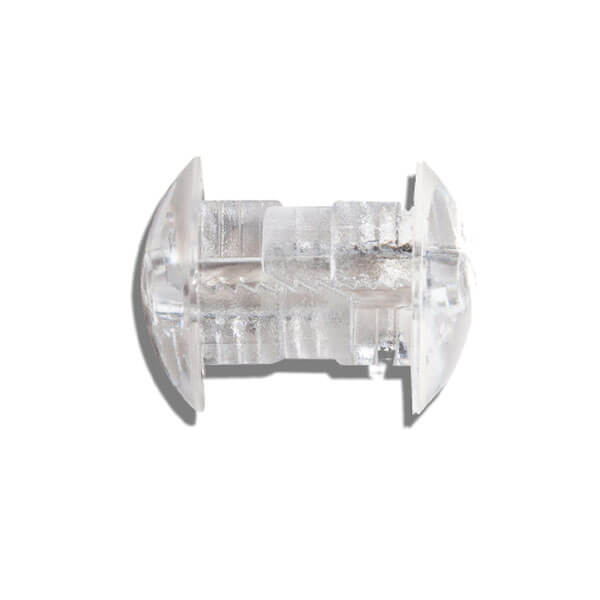

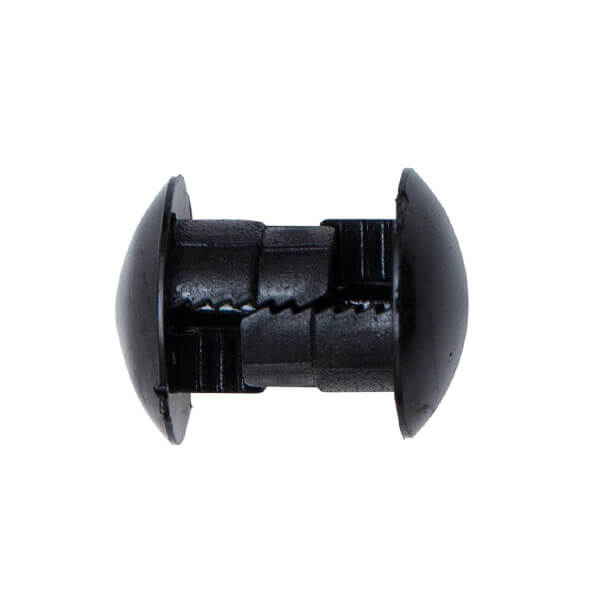

Ratchet Rivets
GMP plastic Ratchet Rivets comprise of two identical parts. These are designed to provide permanent assembly of two or more materials by ratcheting them together with interlocking teeth. A great option for both compressible and rigid materials, they come in a range of colours and sizes.
DETAILS

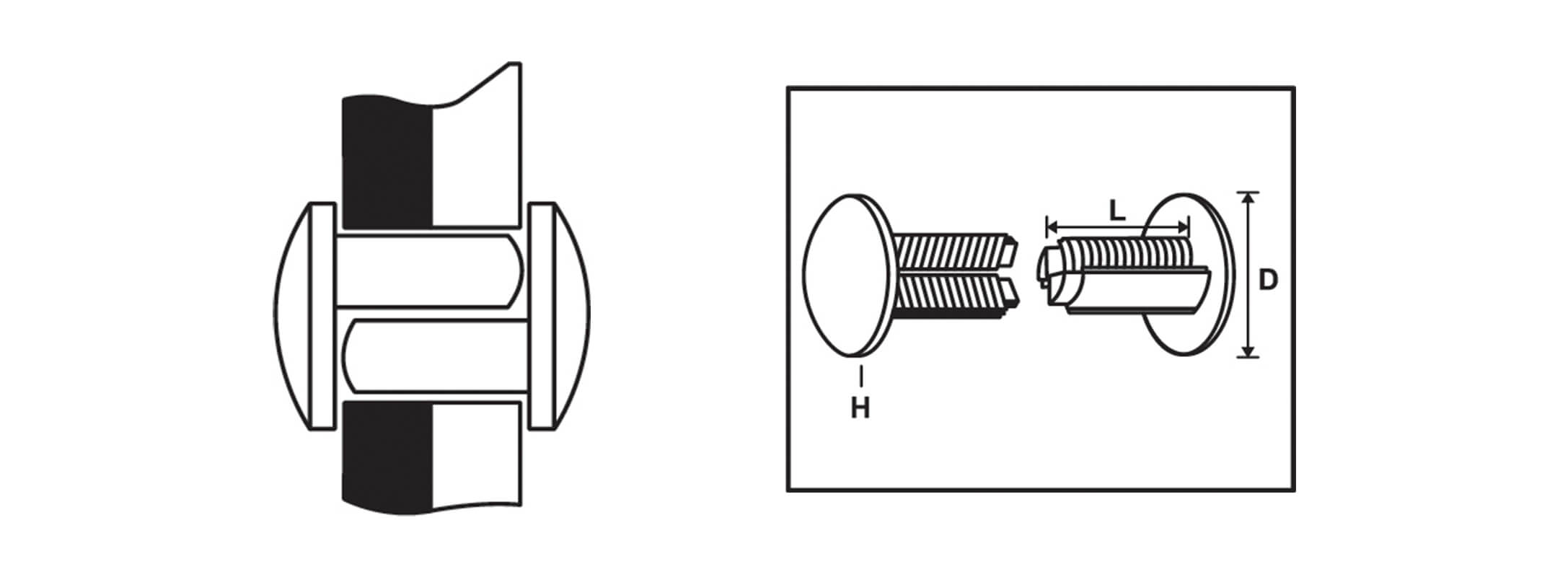

| PART ID | ARTICLE NUMBER | COLOUR | HOLE SIZE MM | APPROX GRIP RANGE | D | H | L | CARTON QTY |
|---|---|---|---|---|---|---|---|---|
| 967799701 | 016-0025 | White | 6.7 – 6.9 | 6.0 – 8.7 | 10.3 | 2.6 | 6.0 | 13000 |
| 967975901 | 016-0037 | Black | ||||||
| 967800001 | 016-0147 | Clear | ||||||
| 970479101 | 016-0097 | White | 6.7 – 6.9 | 10.2 – 15.0 | 11.5 | 1.5 | 10.0 | 8000 |
| 970478901 | 016-0144 | Black | ||||||
| 970492501 | 016-0148 | Opaque | ||||||
| 970478701 | 016-0111 | Black | 7.1 – 7.2 | 15.4 – 21.0 | 11.5 | 1.5 | 15.0 | 5000 |
| 970478801 | 016-0115 | White | ||||||
| 970492601 | 016-0149 | Opaque |
